Printable Tank Dipstick Chart

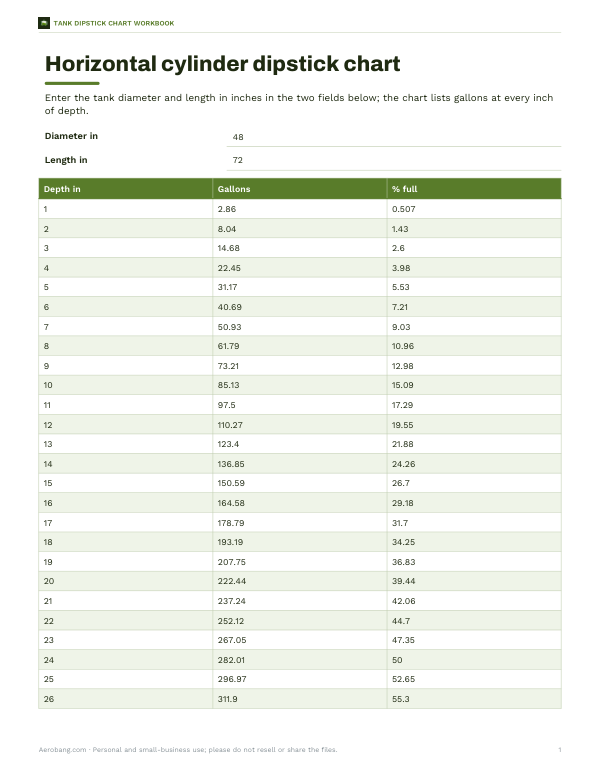

This sheet is for anyone checking fuel, water, or other liquid levels in a horizontal cylinder tank. It includes a dipstick chart with columns for depth in inches, gallons, and percent full. The form fields are set for a 48-inch diameter and 72-inch length tank, and the chart lists gallons at every inch of depth.

Free printable · PDF
- 2 pages
- US Letter — choose “Fit to page” for A4
- PDF, 49 KB
Free for personal, family and classroom use.
Need to edit it? The full pack has the editable Excel and Word files plus all 2 sheets — $5.00, one-time.
Your free PDF is downloading. Want all 2 sheets in one download, plus the editable Excel and Word files so you can change the text?
Instant download · 7-day refund · Secure checkout by Stripe
Enter the tank diameter and length in the two fields, then use the chart to read the gallons at each inch of depth. Print the 2-page Letter PDF and keep it with the tank for quick level checks.
Good for
- Track fuel level by dipstick reading
- Estimate gallons in a storage tank
- Convert tank depth to percent full
Tip: Print at full size so the inch marks and depth rows stay easy to read.
2 files · XLSX, PDF, DOCX
Get every sheet: Tank Dipstick Chart Workbook
This sheet plus 1 more in one download, with the editable Excel and Word files. Generate a dipstick-to-gallons chart for any horizontal, vertical or rectangular tank, plus a fuel and water level log.
$5.00 USD, one-time
- Instant download
- 7-day refund
- Secure checkout by Stripe
7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.

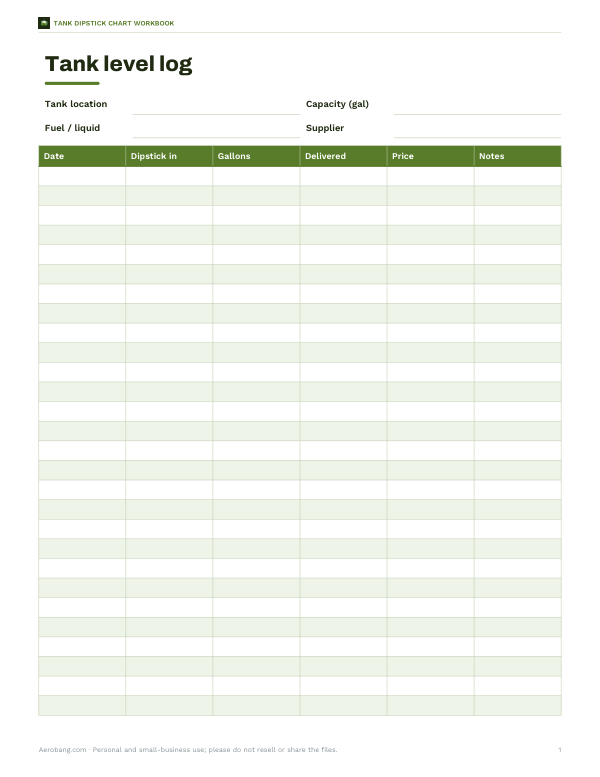

Printable Tank Level Log
